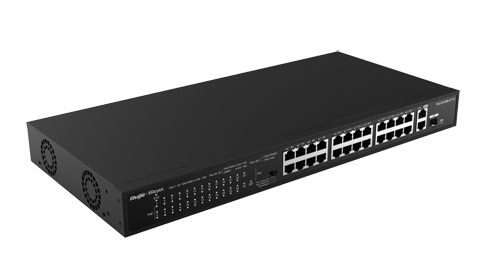

RG-ES126S-LP V2, 24-Port 10/100 Mbps with 2-Port Gigabit Rackmount PoE Switch

The Ruijie RG-ES126S-LP V2 is a reliable and cost-effective 24-Port 10/100 Mbps PoE switch, designed for applications requiring robust power delivery and connectivity in surveillance and small network environments. In addition to the 24 Fast Ethernet ports, this switch includes 2 Gigabit uplink ports for high-speed data transfer, providing a flexible networking solution for a range of devices such as IP cameras, access points, and VoIP phones.

This switch supports PoE power delivery with a maximum of 30W per port, making it suitable for a variety of PoE-enabled devices. It features an unmanaged plug-and-play design, allowing for easy setup without complex configurations. The RG-ES126S-LP V2 is designed with intelligent PoE management and security features that enhance its reliability and performance, particularly in CCTV network applications.

With the ability to extend PoE transmission up to 250 meters, this switch is ideal for installations where devices are located far from the central network. It also includes features like port isolation for enhanced security and PoE auto-recovery to ensure continuous operation. Despite being an unmanaged switch, it can be visualized on the Ruijie Cloud platform when deployed alongside at least one managed switch in the same network, providing additional monitoring and management capabilities.

Specifications:

Key Features:

• Flexible PoE Connectivity: Provides power and data over 24 Fast Ethernet ports with up to 30W per port, plus 2 Gigabit uplink ports.
• Unmanaged Plug & Play: Easy setup with no complex configurations required, ideal for straightforward network deployment.
• Intelligent PoE Management: Includes PoE auto-recovery and intelligent power distribution for reliable operation.
• Extended Transmission: Supports PoE transmission distances up to 250 meters for installations with remote devices.
• Enhanced Security: Features port isolation and extend mode for increased network security and stability.
• Cloud Visibility: Can be visualized on Ruijie Cloud when combined with a managed switch, offering additional monitoring capabilities.

Benefits:

• Easy Installation: The plug-and-play design simplifies network setup and expansion.
• Reliable Power Delivery: Delivers consistent power to PoE-enabled devices, ensuring their continuous operation.
• Extended Reach: Supports long-distance PoE connections, making it ideal for CCTV and other remote applications.
• Enhanced Network Security: Provides advanced security features like port isolation to protect your network.
• Cost-Effective Solution: Offers a balance of performance and cost, suitable for budget-conscious deployments.

Environmental Performance:

• Sustainable by Design: Designed to minimize environmental impact with energy-saving features.
• Energy Efficient: Optimized to reduce power consumption while maintaining high performance.
• Compliance: Meets industry standards for environmental and safety regulations.

1- Rack-Mount or Desktop Setup: Install the switch in a standard 19-inch rack or place it on a desktop or shelf, depending on your setup needs.
2- Cable Connections: Connect Ethernet cables to the 24 Gigabit ports and fiber optic cables to the 2 SFP ports as needed.
3- Power On: Connect the switch to a power source using the provided power cable and ensure that it powers up correctly.
4- Cloud Management Configuration: Access the cloud management platform via a web browser or app, create an account if necessary, and add the switch to your management console.
5- Configuration: Configure the switch settings including VLANs, PoE settings, and network security features according to your network requirements.
6- Monitoring: Use the cloud management interface to monitor the switch’s performance, manage connected devices, and troubleshoot any issues.

1- Small to Medium Enterprises: Ideal for businesses that need high-speed network connectivity and PoE support for devices like IP cameras, VoIP phones, and wireless access points.
2- Office Networks: Provides reliable connectivity and PoE for office environments, supporting various network devices and ensuring efficient network performance.
3- Surveillance Systems: Suitable for deploying IP cameras and other PoE-enabled devices in a security surveillance system.
4- Educational Institutions: Can be used in schools and universities to support classroom technology and network devices across campus.

The Ruijie RG-ES126S-LP V2 is a 24-port 10/100 Mbps PoE switch with 2 Gigabit ports, designed for efficient network connectivity and power delivery. With PoE support on all Fast Ethernet ports, it simplifies the installation of PoE-enabled devices. Its rackmount design makes it suitable for use in server rooms and network closets. The switch is ideal for small to medium businesses, office environments, surveillance systems, and educational institutions where Fast Ethernet connectivity is adequate and PoE support is required. Its cost-effective nature and energy-efficient design make it a practical choice for budget-conscious deployments.
