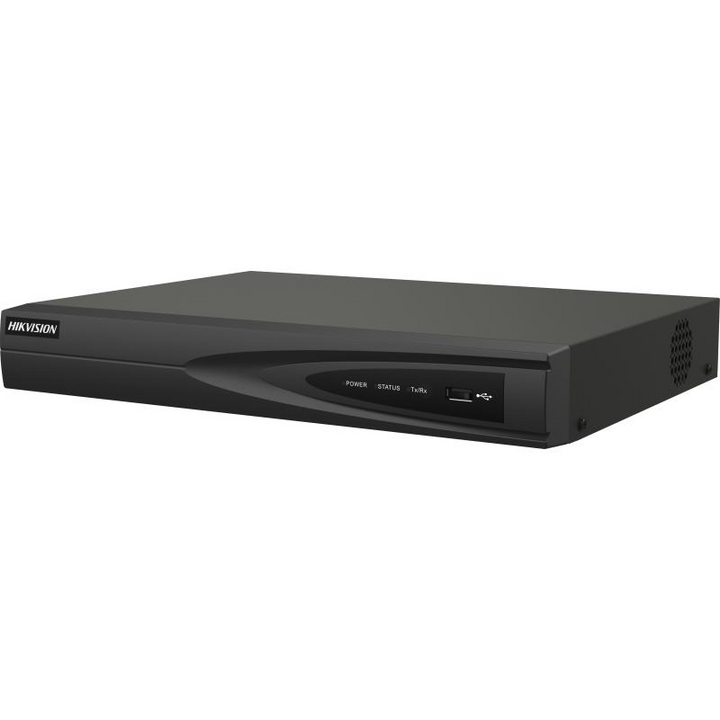

NVR 8 Channel - DS-7608NI-Q1/8P

The Hikvision DS-7608NI-Q1/8P is a Network Video Recorder (NVR) designed for IP camera surveillance systems, with the added convenience of integrated Power over Ethernet (PoE) ports. This model is well-suited for medium-sized to larger installations, offering advanced features and simplifying camera connectivity. Here’s a comprehensive overview:

Specifications

1. Channels:

   • 8 Channels: Supports up to 8 IP cameras, making it suitable for medium to larger surveillance setups.

2. Video Compression:

   • H.265+/H.265/H.264+/H.264: Supports multiple video compression formats. H.265+ is particularly efficient, reducing the storage space required while maintaining high video quality.

3. Recording Resolution:

   • Up to 8MP (4K): Capable of recording video at resolutions up to 8MP, providing clear and detailed footage.

4. Storage:

   • HDD Support: Typically supports two or more internal SATA hard drives. The specific maximum storage capacity should be checked in the device’s manual, but it usually accommodates large drives for extensive recording.

5. Network Connectivity:

   • Gigabit Ethernet: Comes with a Gigabit Ethernet port for high-speed network connectivity, essential for handling multiple high-definition video streams and enabling remote access.

6. PoE Ports:

   • 8 PoE Ports: Includes 8 built-in Power over Ethernet (PoE) ports. This feature allows the NVR to supply power directly to compatible IP cameras, simplifying installation by reducing the number of cables needed for camera power.

7. Remote Access:

   • Remote Viewing: Provides access to live and recorded footage remotely via Hikvision’s software or mobile apps, allowing users to monitor their premises from anywhere with an internet connection.

8. User Interface:

   • On-Screen Display (OSD): Features an intuitive on-screen menu for easy setup and management.

9. Backup Options:

   • Backup: Supports backup of recorded footage via USB or network, making it easy to archive or transfer important data.

10. Playback and Search:

    • Playback: Includes features for efficient playback and searching of recorded footage.

11. Alarm and Event Management:

    • Alarm Integration: Supports alarm inputs and outputs for integration with external alarm systems or other security devices.

Installation and Setup

1- Unboxing and Initial Setup:
Unbox the NVR and place it in a location with adequate ventilation.
Ensure all necessary accessories and cables are included.

2- Connect the Hardware:
IP Cameras: Connect up to 8 IP cameras to the NVR’s PoE ports using network cables. The PoE functionality will power the cameras directly.
Monitor: Connect a monitor using HDMI or VGA cables for initial setup and configuration.
Power: Plug the NVR into a power source using the included power adapter.
Network: Connect the NVR to your network using the Gigabit Ethernet port for internet connectivity and remote access.

3- Initial Configuration:
Power on the NVR and use the connected monitor to access the setup menu.
Log in with the default credentials (admin/12345) and change the password for security.
Set the date and time, configure the cameras, and adjust recording settings as needed.

4- Network and Remote Access:
Configure network settings such as IP address, gateway, and DNS.
Set up remote access by configuring DDNS and port forwarding if required.
Utilize Hik-Connect or other Hikvision software to enable remote viewing and management.

5- Testing and Finalization:
Verify the feed from each camera to ensure proper setup and functionality.
Test recording and playback features to ensure they are working as expected.
Backup your configuration settings and confirm that remote access is operational.

1- Medium to Large Businesses: Ideal for offices, retail environments, or other commercial settings needing surveillance in multiple areas.
2- Residential Properties: Suitable for larger homes or properties where multiple entry points and key areas need monitoring.
3- Educational Institutions: Useful for schools, colleges, or universities requiring coverage across various campus locations.
Industrial Facilities: Provides comprehensive coverage for larger warehouses, factories, or industrial sites.

The Hikvision DS-7608NI-Q1/8P is a versatile and powerful NVR with support for up to 8 IP cameras and 8 integrated PoE ports for simplified camera installation. It offers high-resolution recording, efficient video compression, and robust network capabilities. The built-in PoE ports streamline installation by eliminating the need for separate power supplies for the cameras, making it a practical choice for a wide range of surveillance applications.
